| Available Dimension | ||
| Mill finish Surface | Bright finish Surface | |
| Thickness (mm) | 1.00---6.50mm | 1.20---6.50mm |
| Pattern height | Sheet Thickness from 1.0mm to 2.0mm, bar height: 0.50mm | Sheet Thickness from 1.0mm to 2.0mm, bar height: 0.50mm |
| Sheet Thickness from 1.0mm to 2.0mm, bar height: 1.00mm | Sheet Thickness from 1.0mm to 2.0mm, bar height: 1.00mm | |
| Sheet Thickness above 2.0mm, bar height: 1.50mm | Sheet Thickness above 2.0mm, bar height: 1.50mm | |
| Width (mm) | Maximum 1500mm | Maximum 1650mm |
| Length (mm) | Maximum 6000mm | Maximum 6000mm |
| Paper interleaves | On request for selected | On request for selected |
| Normal size | 1200×2400mm, 1219×2438mm, 1219×3048mm | 1200×2400mm, 1219×2438mm, 1219×3048mm |
Appliacation
A. Tread Aluminum Plate has good skid resistance. So it is usually used in the loading ramps, trench covers, dock flooring, stair treads and even for the car, truck, ambulance and fire truck.
B. It has the decorative function, so it can be used as decoration wall panels, cabinet and ceilings.
C. Because of the anti- corrosion, it can be used in the chemical industry, or in the decoration of the ship and port facilities.
Compliance with international standards
* EN 573-3 Aluminium and aluminium alloys - Chemical composition and form of wrought products – Part 3: Chemical composition and form of products
* EN 1386 Aluminium and aluminium alloys - Tread plate – Specifications
* EN 15088 Aluminium and aluminium alloys - Structural products for construction work - Technical conditions for inspection and delivery
Indestructible and resilient despite low weight
3003 3105 Aluminum tread checkered plates sheets are very resilient against aggressive substances and therefore, they regarded as indestructible. Due to their durability, they are used in many different areas because they do not lose their shape or look, even after a long time. Whether industrial floors, airplanes, ships and vehicles, or stairs indoors or outdoors - aluminium checker plates are a popular material which is appreciated for its excellent properties, the high resilience and the low weight. Even designers use these plates due to their decorative look.
Indestructible and resilient despite low weight
Tread Aluminum Plate are very resilient against aggressive substances and therefore, they regarded as indestructible. Due to their durability, they are used in many different areas because they do not lose their shape or look, even after a long time. Whether industrial floors, airplanes, ships and vehicles, or stairs indoors or outdoors - aluminium checker plates are a popular material which is appreciated for its excellent properties, the high resilience and the low weight. Even designers use these plates due to their decorative look.
Attractive pattern ensures slip resistance

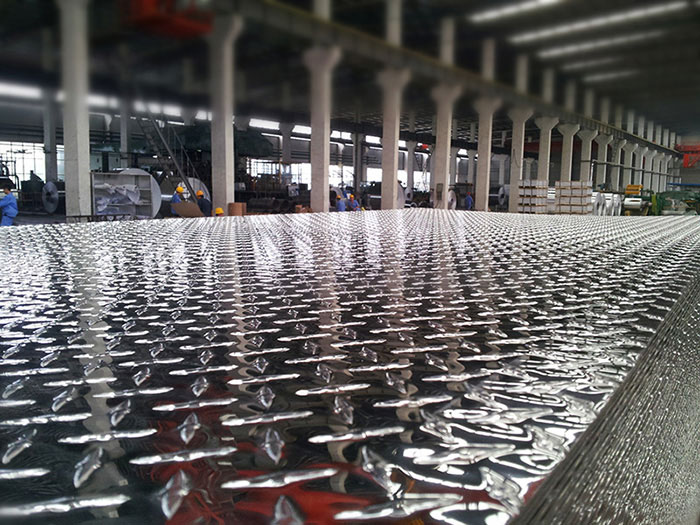

During production, the pattern is applied to the plate by forming rolls which are pressed onto the plate with a large force. In doing so, the bottom of the plate remains plain. It is not possible to emboss the aluminium plate subsequently.
Due to the diagonally finned structure, the plate becomes slip-resistant which is why it is also suitable for use outdoors and in wet areas. In addition to the finned structure, there are many other shapes and patterns which provide the same characteristics.

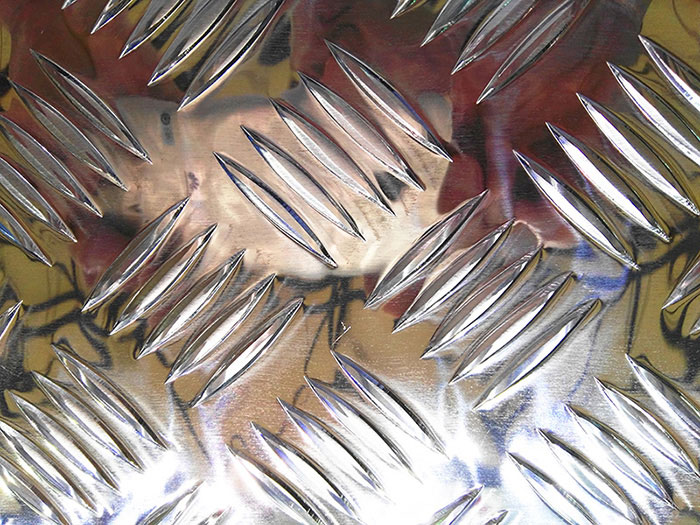

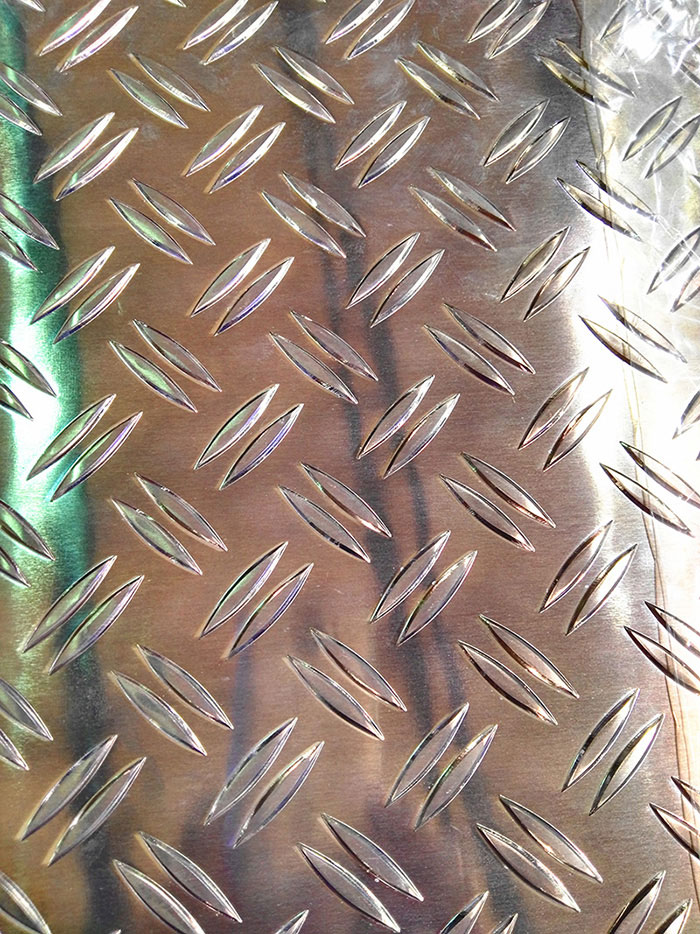

Depending on the type of plate, 1 to 5 bars are arranged next to each other, forming a checked pattern. It is differentiated between 1 bar(diamond), 2 bar, 3-bar and 5-bar patterns.
(1) 1060 1100 1200 Aluminum Tread Checkered Plate Sheets
The versatile application possibilities of 1060 1100 1200 Aluminum tread checkered plate sheet make it an ideal material which is suitable for both indoor and outdoor use thanks to its excellent characteristics. Other names for used aluminium checker plate are diamond plate, tread plate or Durbar floor plate, checkered plate.
| Alloy | 1060, 1100, 1200 |
| Temper | H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, F |
| Surface | Bright finish, Mill finish |
| Bar Difference | 1 bar (Diamond), 2 bar, 3 bar, 5 bar |
(2) 3003 3105 Aluminum Tread Checkered Plate Sheets
3003 3105 Aluminum is alloyed with 1.20% manganese, which increases the strength of 3003 3105 over commercially pure aluminum (1100 series). 3003 3105 has excellent workability, weldability, and good corrosion resistance. It is used for drawing, forming, spinning, fuel tanks, sheet metal works and other applications that require moderate strength for an aluminum with good weldability. H14 designates the temper, and means that 3003 has been strain hardened and partially annealed. In this condition, 3003 3105 can be easily formed. Embossing or debossing 3003 3105 in this temper should not strain or crack the aluminum. 3003 3105 Aluminum tread checkered plate sheet- Often referred to as diamond plate, it has the same properties of 3003 3105 -H14, while excellent at resisting corrosion, and strong for light weight aluminum applications. The diamond trend pattern is slip-resistant and cosmetically appealing.
The versatile application possibilities of 3003 3105 Aluminum tread checkered plate sheet make it an ideal material which is suitable for both indoor and outdoor use thanks to its excellent characteristics. Other names for used aluminium checker plate are diamond plate, tread plate or Durbar floor plate, checkered plate.
| Alloy | 3003, 3105 |
| Temper | H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, F |
| Surface | Bright finish, Mill finish |
| Bar Difference | 1 bar (Diamond), 2 bar, 3 bar, 5 bar |
(3) 5005 5086 5052 5083 Aluminum Tread Checkered Plate Sheets
Aluminium alloy 5005 5086 5052 5083 contains nominally 0.8% magnesium. It has medium strength, good weldability, and good corrosion resistance in marine atmospheres. It also has the low density and excellent thermal conductivity common to all aluminium alloys. It is the most commonly used grade of aluminium in sheet and plate form.
Corrosion Resistance 5005 5086 5052 5083 has the same high resistance to general corrosion as other non heat treatable aluminium alloys. It also has the higher resistance to slightly alkaline conditions common to the 5000 series alloys. The atmospheric corrosion resistance of 5005 is similar to that of 3003.
When anodised to improve corrosion resistance, the film on 5005 5086 5052 5083 is clearer than on 3003, and gives better colour match with 6063 architectural extrusions.
5005 5086 5052 5083 Aluminum tread checkered plate sheet make it an ideal material which is suitable for both indoor and outdoor use thanks to its excellent characteristics. Other names for used aluminium checker plate are diamond plate, tread plate or Durbar floor plate, checkered plate.
| Alloy | 5005 5086 5052 5083 |
| Temper | H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F |
| Surface | Bright finish, Mill finish |
| Bar Difference | 1 bar (Diamond), 2 bar, 3 bar, 5 bar |
(4) 6061 6082 Aluminum Tread Checkered Plate Sheets
The 6061 6082 T6 aluminum tread plate has the highest corrosion resistance of all the aluminums that have been heat treated. It is an alloy that has been formed with silicon and magnesium. It has a lower strength than other comparable aluminums, but is still widely used. This is partly due to its corrosion resistance and partly due to its excellent mechanical properties. There are a variety of ways you can form 6061 aluminums, such as through machining and welding. The machinability rating of this alloy is 90 percent. It also has great joining capabilities. If needed, this product can be anodized or have other coatings applied.
The applications 6061 6082 aluminum alloys are frequently used for include base plates, truck components, marine fittings, marine components, marine hardware, electrical connectors, electrical fittings and camera lens mounts. This is only a few of the wide array of applications this alloy is used for. It also has the capability to be used for heavy duty structures that need corrosion resistance and good weight-to-strength ratio.
Hot treating and cold working can also be used for 6061 6082 alloys. When in the annealed state, cold working can be easily performed, creating an end product that is cut, stamped, drilled, deep drawn, bent or tapped. These can all be achieved using standard cold working methods.
When heat treating this alloy, thorough heating should be done at 990 degrees F, and then be water quenched. For precipitation hardening, the metal should be placed in 320 degrees F for 18 hours, air cooled, then placed in 350 degree F for eight hours, and then air cooled again.
| Alloy | 6061, 6082 |
| Temper | H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F |
| Surface | Bright finish, Mill finish |
| Bar Difference | 1 bar (Diamond), 2 bar, 3 bar, 5 bar |
(5) 2 3 5 Bar Aluminum Tread Checkered Plate Sheets

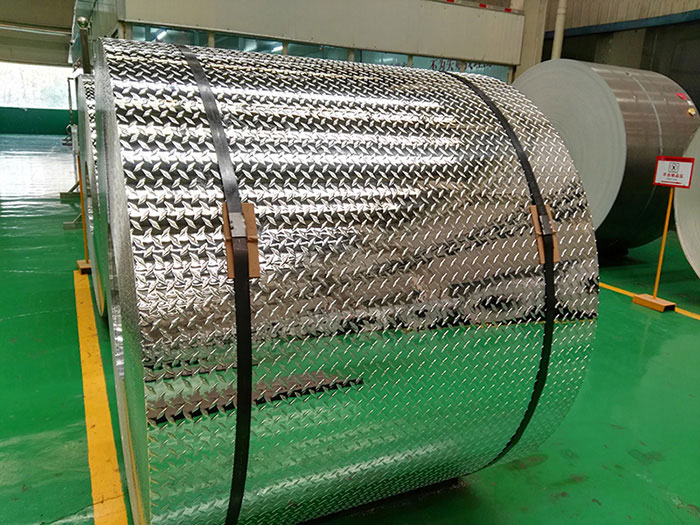

2 3 5 Bar aluminum tread checkered plate sheet coil, also known as aluminum checker plate, aluminium tread plate and aluminium floor plate, is a type of lightweight metal stock with a regular pattern of raised diamonds or lines on one side, with the reverse side being featureless.
The added texture reduces the risk of slipping, making aluminum diamond plate sheet a solution for stairs, catwalks, walkways, and ramps in industrial settings. Its non-skid properties mean that 5 Bar aluminum tread checkered plate sheet coil is frequently used on the interior of ambulances and on the footplates of firetrucks. Additional applications include truck beds and trailer floors.
2 3 5 Bar aluminum tread checkered plate sheet coil can also be used decoratively, particularly highly polished aluminum variants.
| Alloy | 1060, 1100, 1200, 3003, 3105, 5005, 5052, 5251, 5754, 5454, 5154, 5085, 5086 6061, 6082 |
| Temper | H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F |
| Surface | Bright finish, Mill finish |
| Bar Difference | 1 bar (Diamond), 2 bar, 3 bar, 5 bar |
Application
A. 2 3 5 Bar aluminum tread checkered plate sheet coil has good skid resistance. So it is usually used in the loading ramps, trench covers, dock flooring, stair treads and even for the car, truck, ambulance and fire truck.
B. It has the decorative function, so it can be used as decoration wall panels, cabinet and ceilings.
C. Because of the anti- corrosion, it can be used in the chemical industry, or in the decoration of the ship and port facilities.
